Start your laser business with E200S.

Engrave, Cut, & Mark any material today!

Grand total
Add to Wishlist
Add to Wishlist

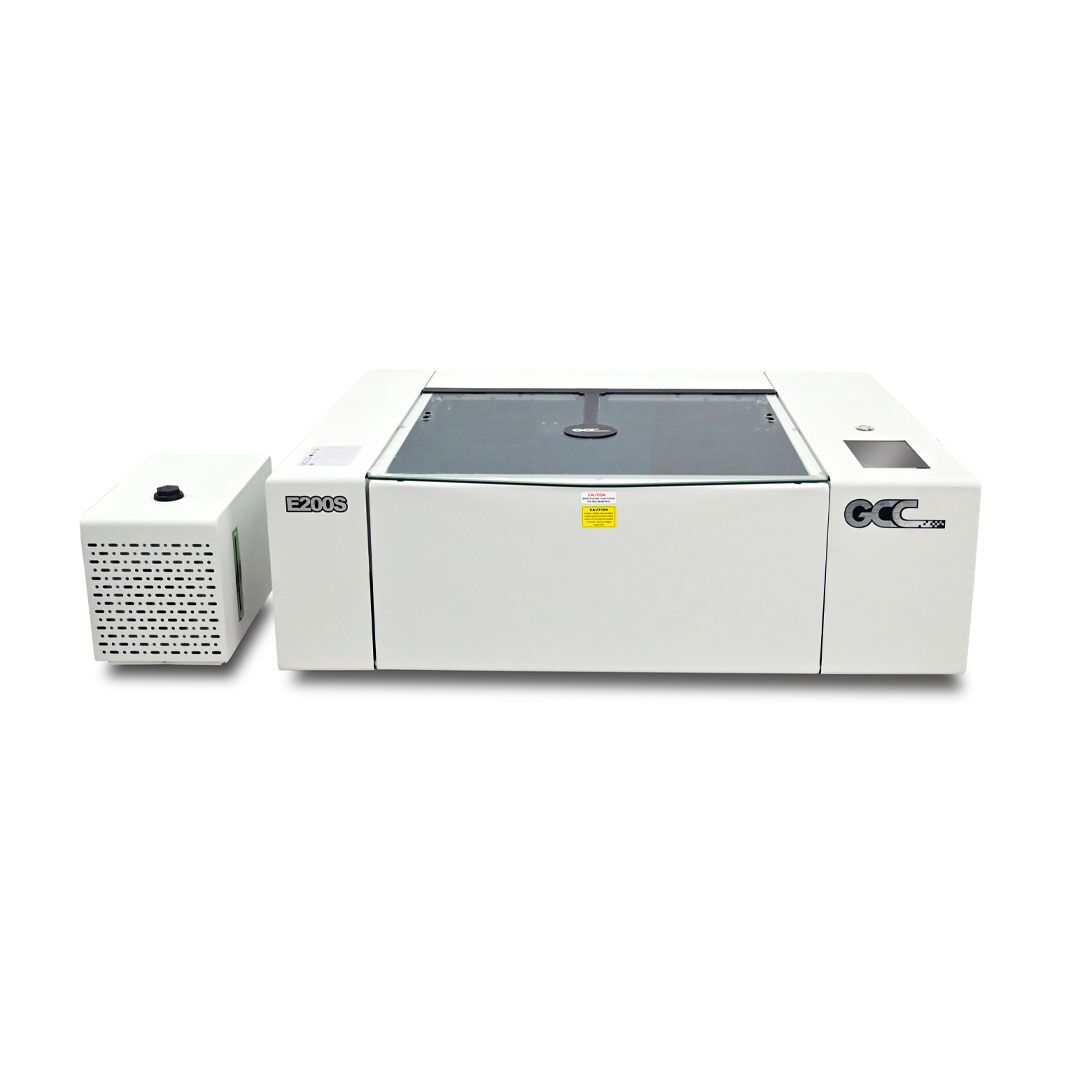

E200S Series CO2 desktop laser engraver provides an easy operating workflow and is able to complete different processing procedures quickly, containing various advanced functions with stable quality and excellent safety features.

OPTIONAL ITEMS

ROTARY

To engrave cylindrical and spherical objects.

Purchase

BLUE LASER

To engrave and mark on materials like metal, plastic, and laser hot foil for bonding.

Purchase

FUME EXTRACTION SYSTEM

Designed to remove hazardous fumes and dust during laser processing.

Purchase

AIR COMPRESSOR

Prevents moisture damage to optics, maintains air pressure, and prevents overheating.

Purchase
  • APPLICATIONS
  • SPECIFICATIONS
  • MATERIAL LIST
APPLICATIONS
SPECIFICATIONS
Work Area 510 x 330 mm (20 x 12.9 in.)
Maximum Part Size (WxLxH) 520 x 340 x 20 mm (20.4 x 13.4 x 0.78 in.) (with grid cutting table)
505 x 340 x 76 mm (19.8 x 13.4 x 2.99 in.) (remove grid cutting table)
CCD Camera Standard, accurate within 4mm (0.16 in.)
Working table Standard grid cutting table
Dimensions 915 x 780 x 300 mm (36 x 30.7 x 11.8 in. )
Laser Source 40W Sealed CO2 laser
Drive Closed-loop DC Servo Control
Maximum Working Speed 20 IPS
Maximum Cutting Thickness 10mm
Speed Control Adjustable from 0.1~100% (Up to 5 color-linked speed settings per job)
Power Control Adjustable from 0~100% (Up to 5 color-linked power settings per job)
DPI Available 250,380,500,760,1000
Focus Lens Standard 1.5”
Computer interface Full-speed USB 2.0 port, 10 Base-T Ethernet
Compatible Operating systems MS Windows (SmartJOB/Printer driver), Mac OS (SmartJOB)
Control Panel 7”touch screen
Connection WiFi, Ethernet, USB
Water Chiller Standard
Air Compressor Built-in, available for external high performance air compressor(Option)
Blue Laser 10W 450 nm (Option)
Safety Class 1 Laser Product Complies with EN60825-1
Class 2 Laser Product Complies with CDRH
Class 4 Laser Product Complies with Blue Laser (Option)
Facility Requirements
Electrical 100-240VAC, 50-60Hz Auto Switching, Max. 15A
Fum Extraction System External exhaust system with minimum flow rate 300 m3/h (10594 ft3/h) is required, 2,500PA negative pressure (Pure-Air PA-300 @ 4" exhaust port)
MATERIAL LIST

What materials can I engrave, cut, and mark with E200s?

Material Engraving Cutting Remark
E200s Acrylic Acrylic E200s E200s 10mm
E200s Wood Wood E200s E200s 3mm
E200s MDF MDF E200s E200s 3mm
E200s Cork Cork E200s E200s
E200s Cardboard Cardboard E200s E200s
E200s Paper Paper E200s E200s Paper engraving effect
depends on paper color
E200s Rubber Rubber E200s E200s 2mm
E200s Glass Glass E200s E200s
E200s Tile Tile E200s E200s
E200s Marble / Granite Marble / Granite E200s E200s
E200s Leather Leather E200s E200s
E200s Food Food E200s E200s
E200s Food Plastic Pet E200s E200s
E200s Textile Textile Fabric E200s E200s
PU film
(Heat transfer material)		 E200s E200s
Twill E200s E200s
E200s Metal Metal Anodized Aluminum E200s E200s
Stainless Steel E200s E200s (with spray)

What are the key advantages of using E200S Laser Machine?

Customization Capabilities

Laser engraving lets you easily personalize a wide range of items,

from gifts to industrial parts, providing versatile design options for any business.

Cost-Effective and Sustainable

Laser engraving eliminates the need for consumables like ink, chemicals, and cutters, ensuring a cost-effective and sustainable process.

Endless Application Possibilities

Effortlessly handle a range of materials—wood, metal, plastic, glass, and leather—with our versatile, intuitive laser machines.

Boost Your Sales Price!

With durable, abrasion-resistant engravings, the premium quality of laser engraving enables you to raise your product’s sales price, significantly enhancing profitability.

High Precision

Achieve impeccable detail and ultra-fine lines with laser engraving, even for small fonts.
