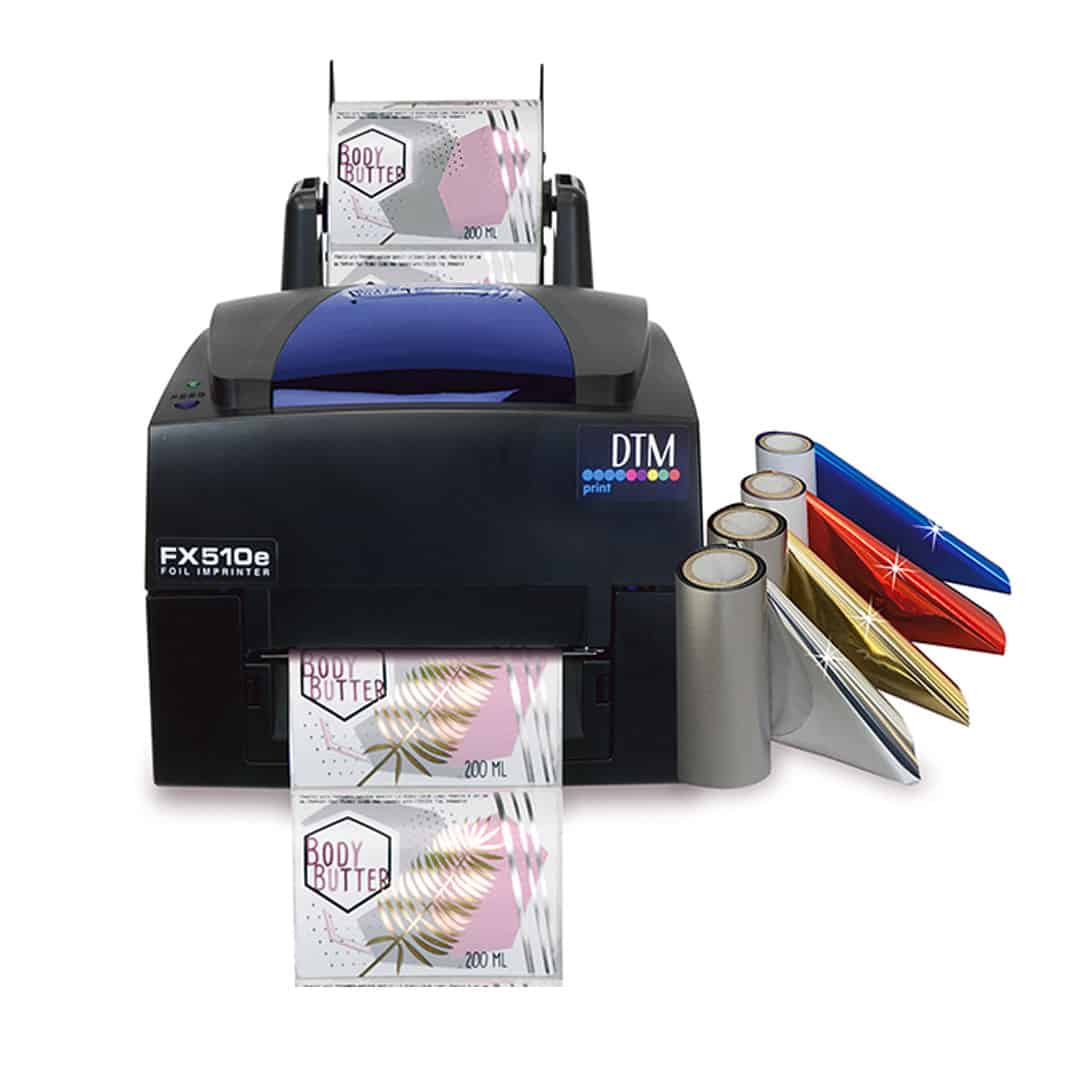

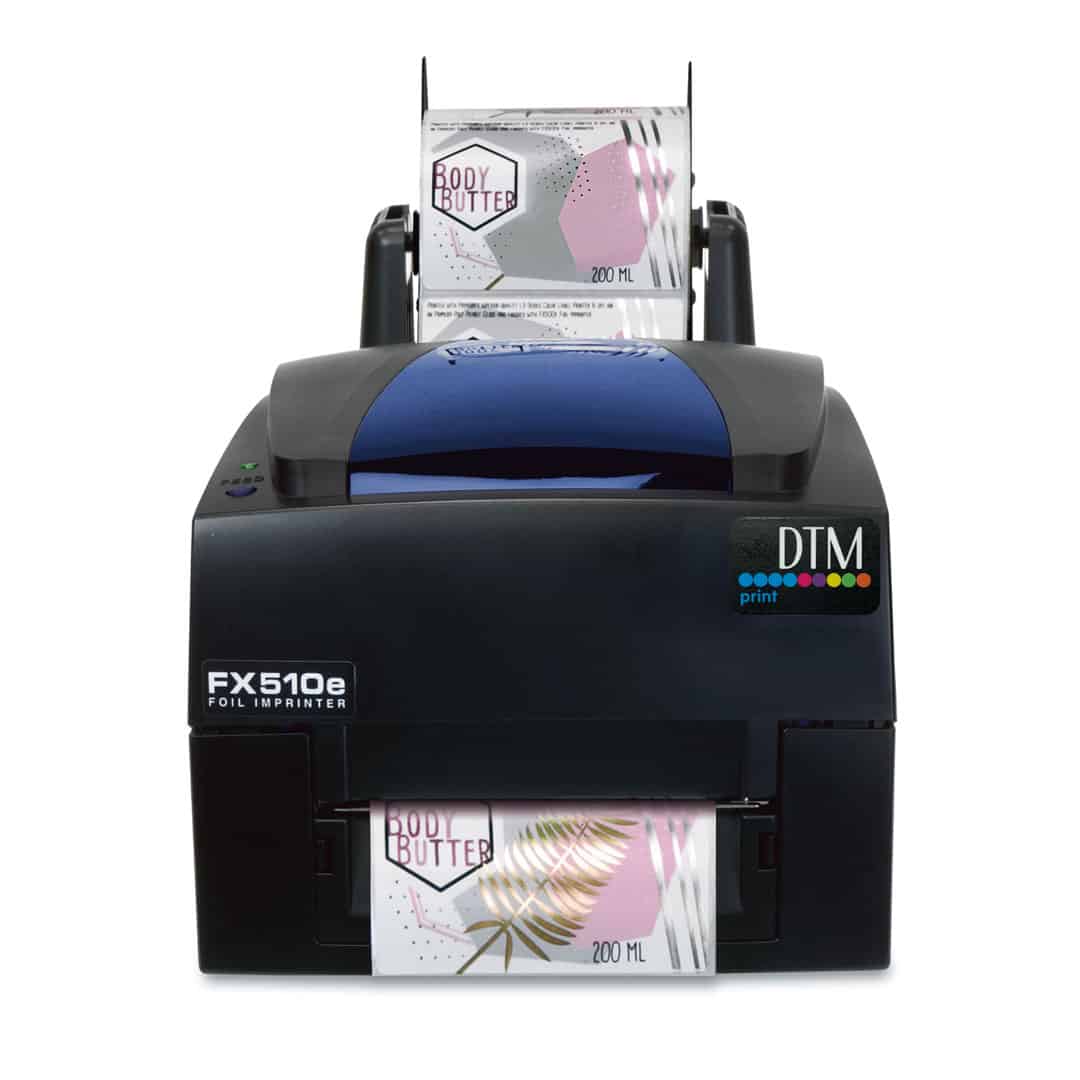

FX510e Foil Printer

Print Method: Thermal transfer & Direct thermal
Max. Print Speed: 101.6 mm (4”) per second
Max. Print Width: 105.7 mm (4.16”)
Print Length: 4 mm (0.16”) – 792 mm (30”)
Media Width: 25.4 – 118 mm (1” – 4.64“)
Media Types: Roll-fed continuous, die-cut or blackmark labels or tags; roll-fed tags with punched hole
Print Resolution: 300 dpi (12 dots/mm)

Grand total
Add to Wishlist
Add to Wishlist

Specifications FX510e Foil Printer

Print Method: Thermal transfer & direct thermal
Print Resolution: 300 dpi (12 dots/mm)
Max. Print Speed: 101.6 mm (4”) per second
Max. Print Width: 105.7 mm (4.16”)
Print Length: 4 mm (0.16”) – 792 mm (30”)
Media Width: 25.4 - 118 mm (1” - 4.64“)
Media Thickness: 0.06 - 0.25 mm (0.003” - 0.01”)
Media Types: Roll-fed continuous, die-cut or blackmark labels or tags; roll-fed tags with punched hole
Media Sensing: Movable reflective sensor and two fixed and central aligned transmissive sensors
Supply Media Roll: Internal: 127 mm (5”) OD
External: 254 mm (10”) OD
Ribbon Width: 30 - 110 mm (1.18” - 4.33”)
Max. Ribbon Length: 300 m (981’)
Supply Ribbon Roll: 25.4 mm (1”) ID core with max. 68 mm (2.67”) OD
Ribbon Types: Wax, wax/resin, resin
Recommended Ribbons:
DTM Print certified thermal transfer ribbons in metallic colors (gold, silver, blue, red), spot colors and clear foil

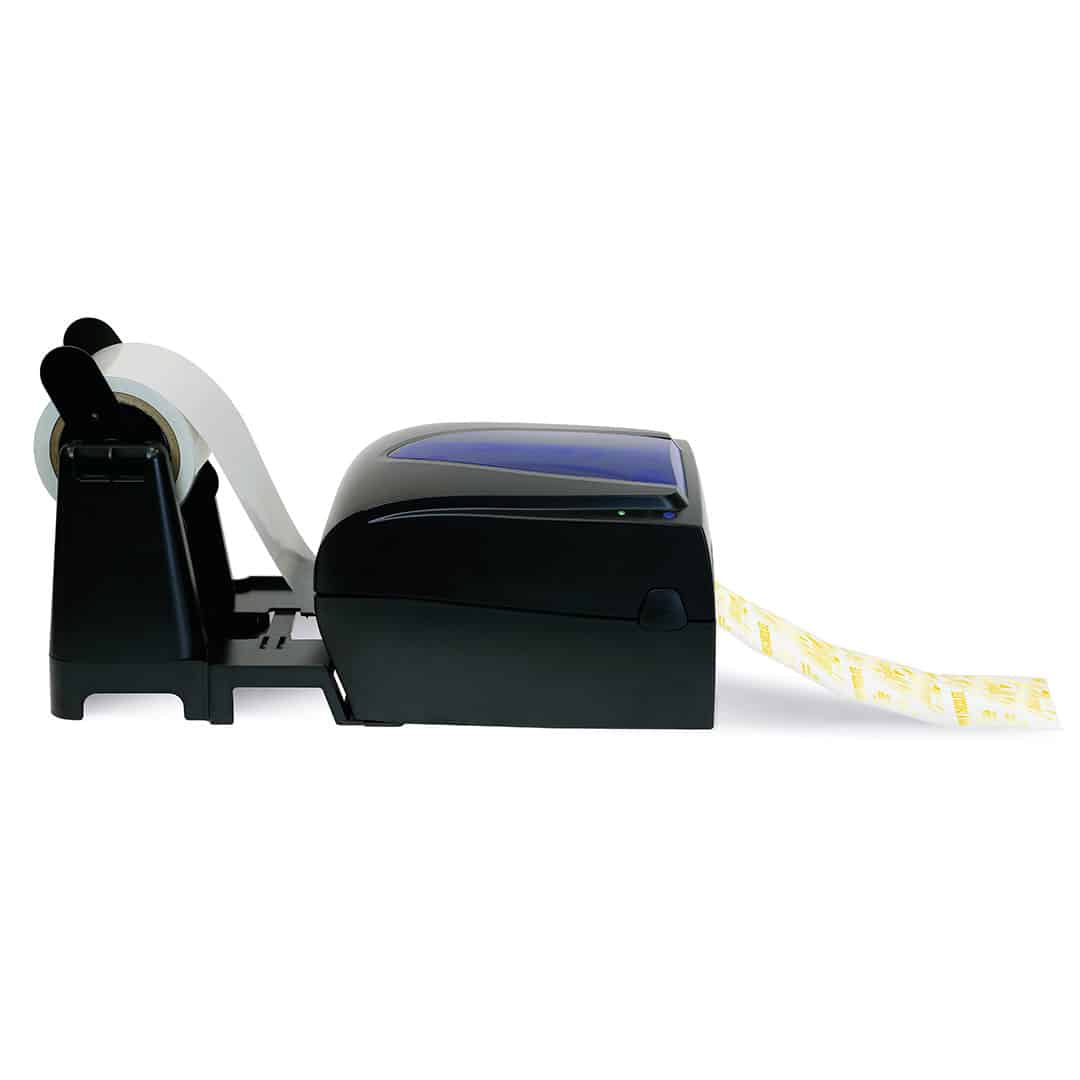

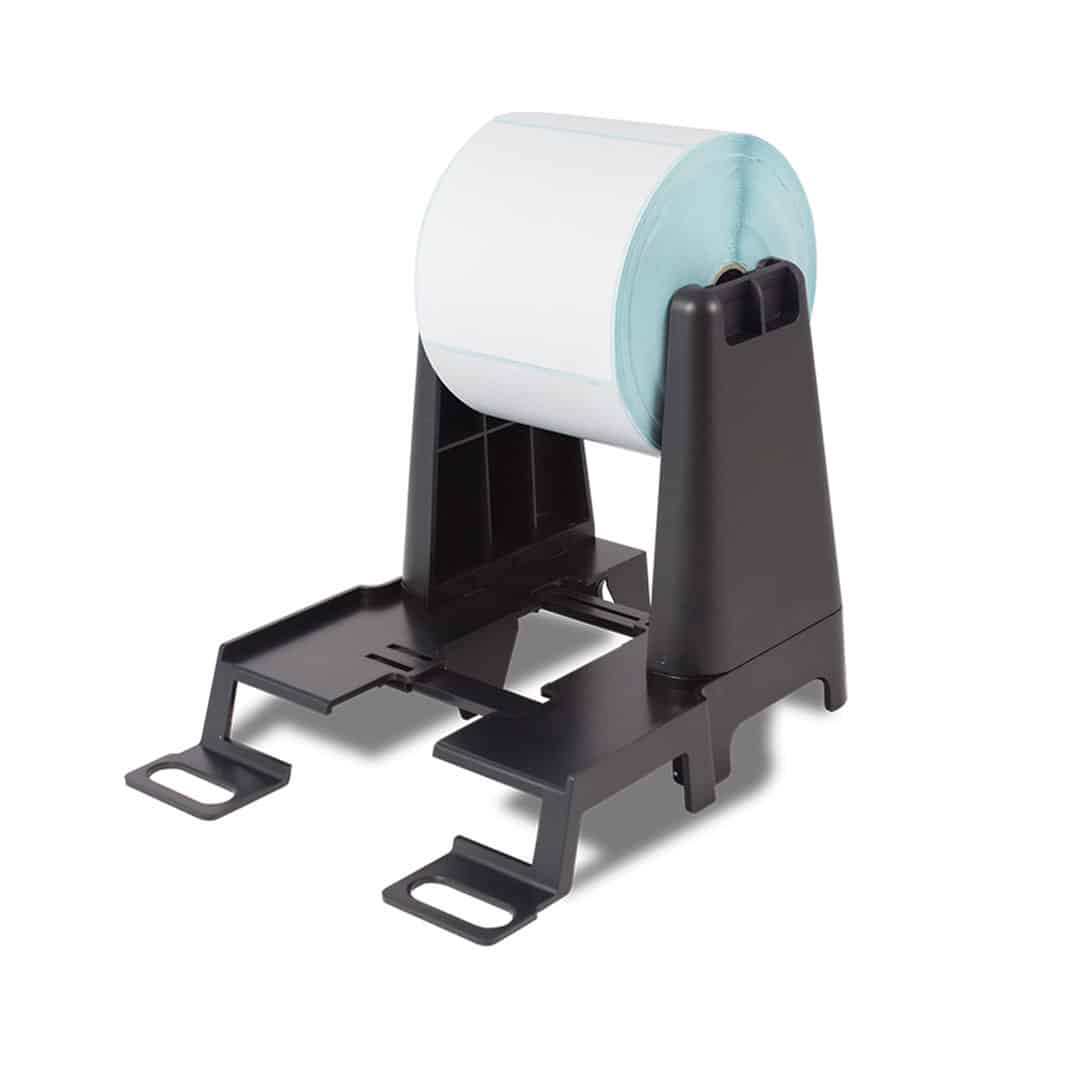

Included: Passive Label Unwinder for 25/76 mm (1”/3”) cores with max. 254 mm (10”) OD and media max. 114 mm (4.5”) wide
Data Interface: USB 2.0
Electrical: AC input: 100-240 VAC, 50/60 Hz
DC output: 24 VDC, 2.4 A
Software (included): NiceLabel Free 2019 DTM Edition (Windows)
Belight Swift Publisher 5 (Mac)
Operating Systems: Windows 7 / 10, OS X 10.9 or higher
Printer Language: EZPL, GEPL, GZPL
Indicator Lights: One bi-color status-LED
Controls: Feed Button
Certifications: CE, FCC Class A, RoHS
Weight: 2.5 kg
Dimensions: 226 mmW x 171 mmH x 285 mmD
(8.9”W x 7.32”H x 11.2”D)
Note: Color label printers are not included in the price of the FX510e Foil Imprinting System.
Options: FX510e

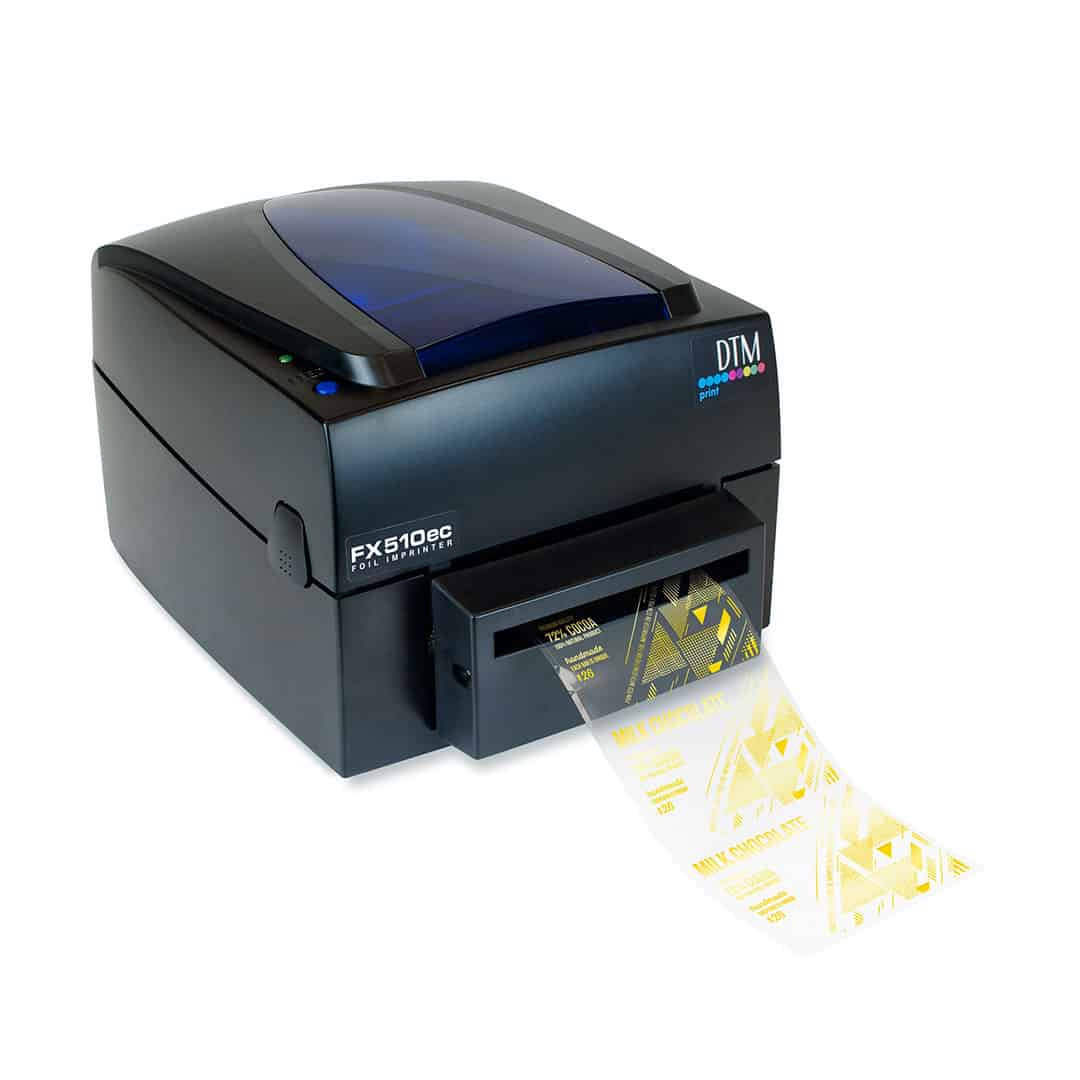

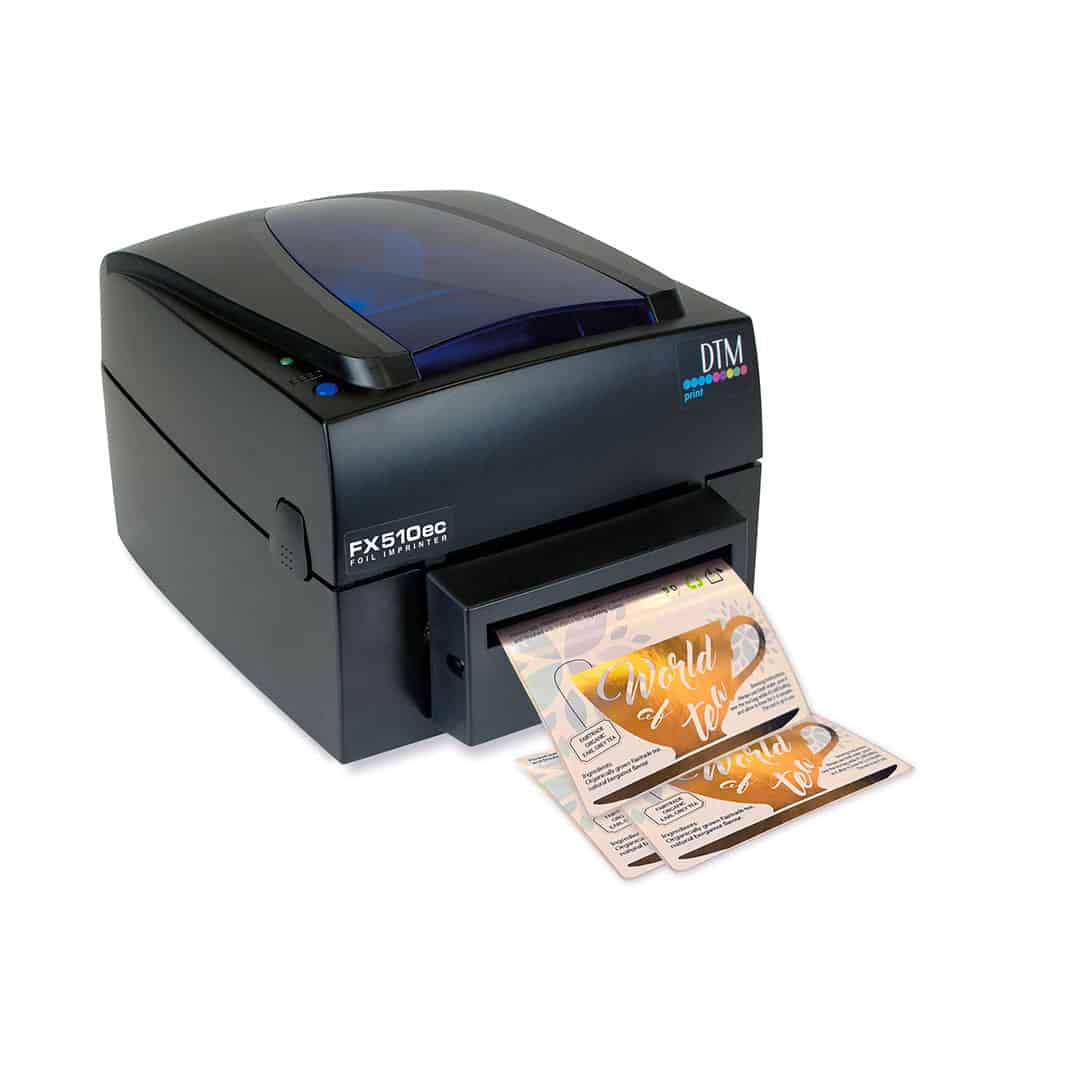

FX510ec (with cutter module)
RW-7 / RW-4 External Label Rewinder
Manufacturer: DTM Print GmbH
