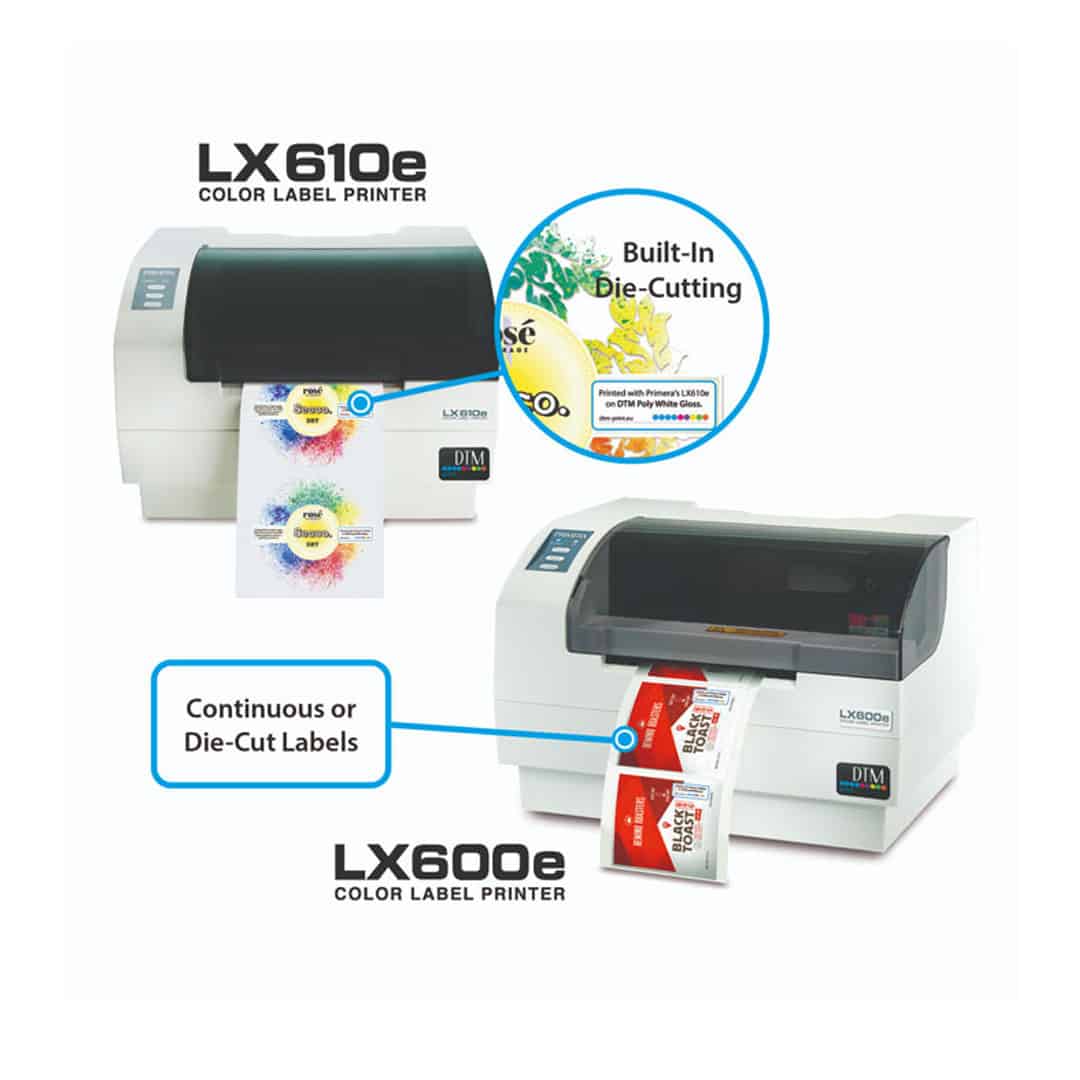

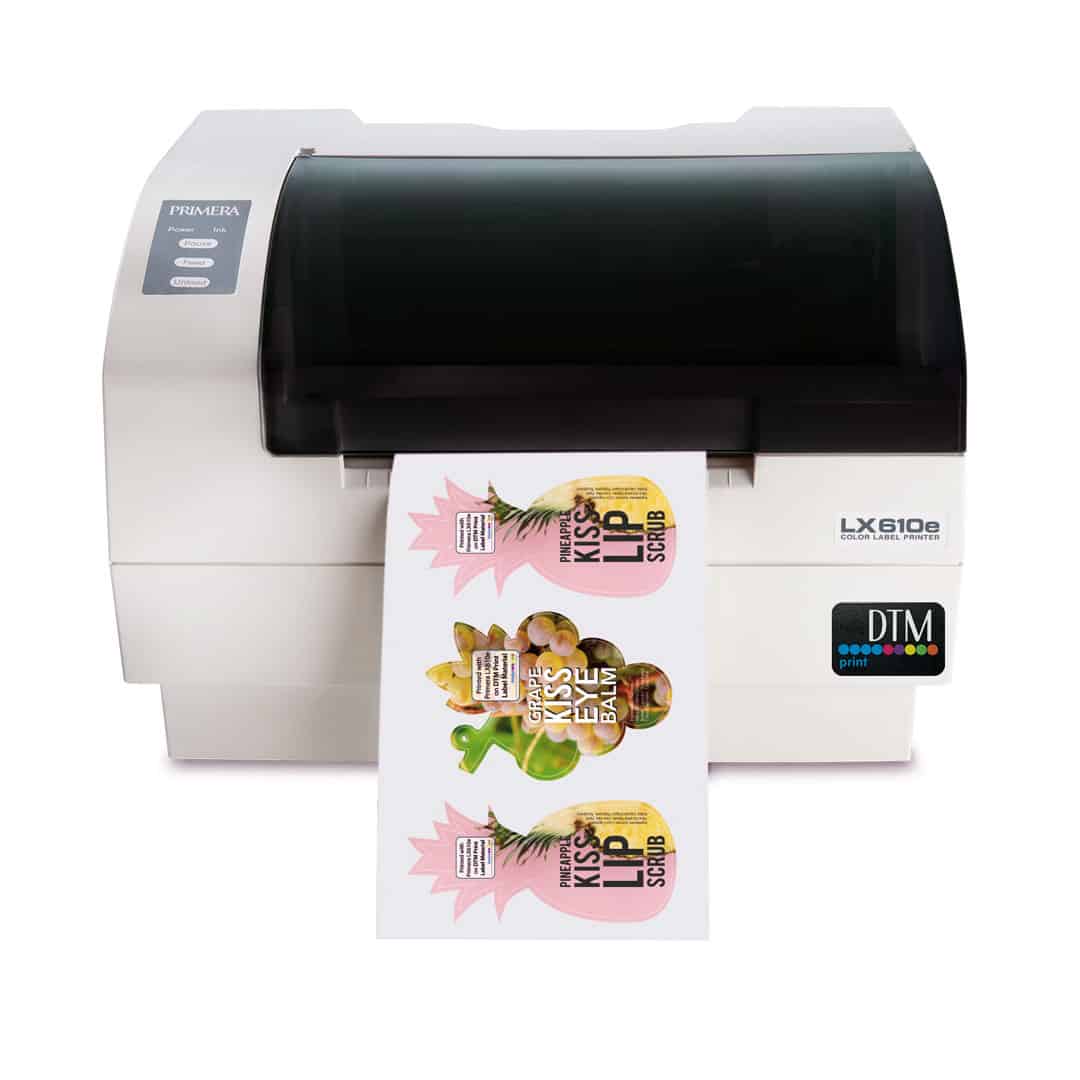

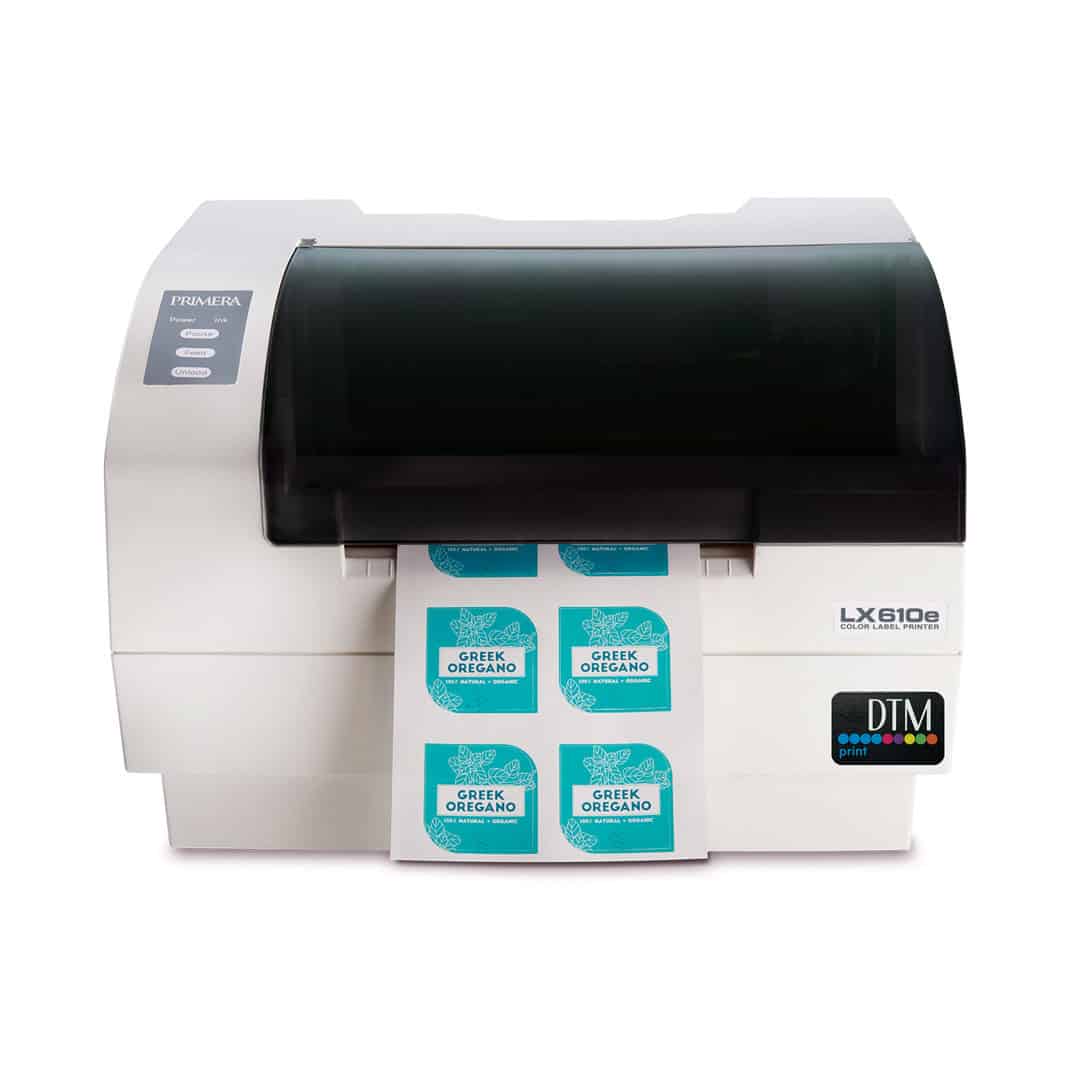

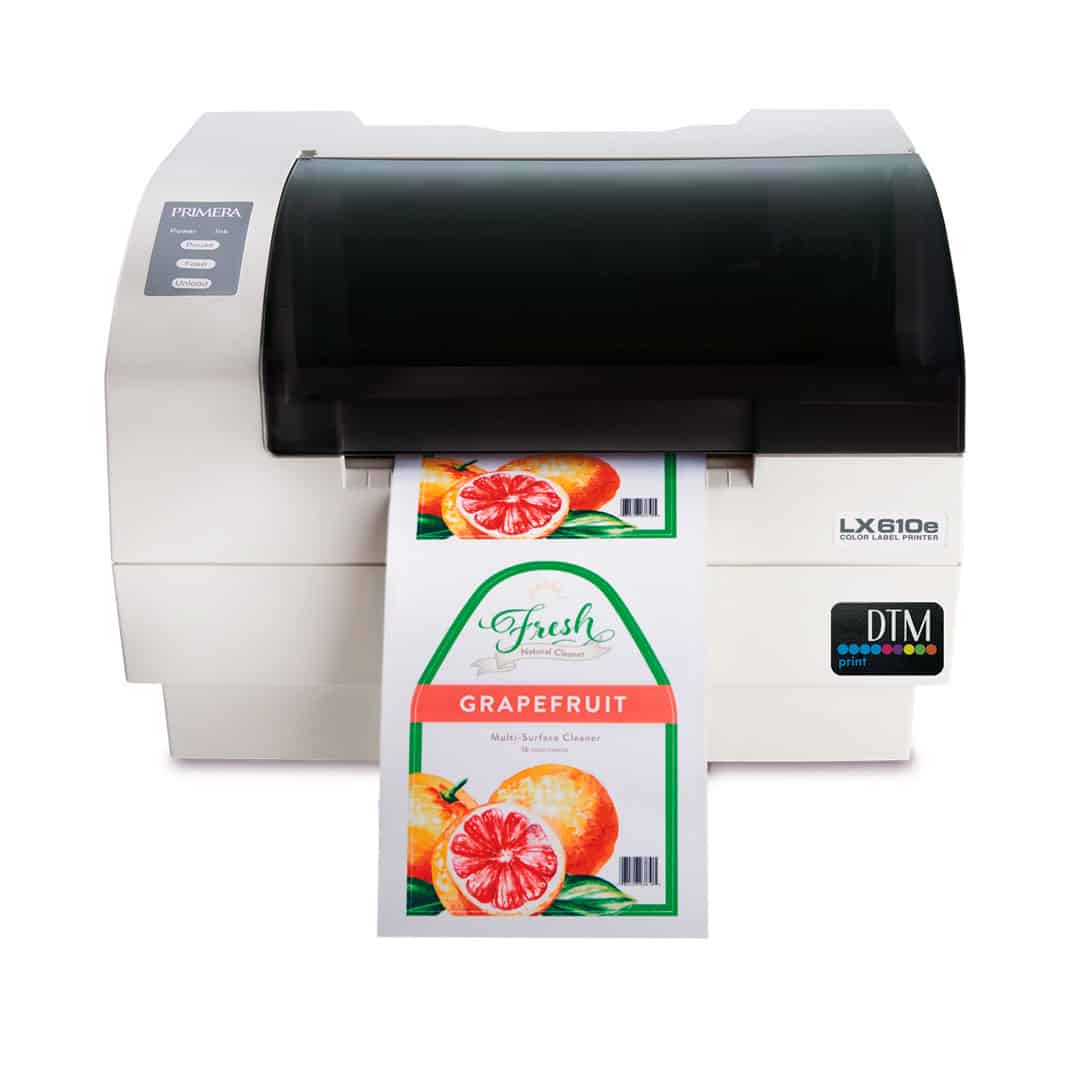

LX610e

Built-in digital die-cutting mechanism

Print Method:

Thermal inkjet; Dye & Pigment ink

Print / Cut Speeds:

Pre-die cut media: Up to 114.3 mm per second (4.5″). Digital die-cut speeds are dependent upon the image being cut

Print Width:

Pre die-cut: 13 mm (0.5″) to 127 mm (5″) Die-cut: 13 mm (0.5″) to 104 mm (4.1″)

Media Width:

Pre die-cut: 54 mm (2.125″) to 133 mm (5.25″) Die-cut: 121 mm (4.75″)

Print Resolutions:

4800 dpi full-color printing

Grand total
Add to Wishlist
Add to Wishlist
  • APPLICATIONS
  • DESCRIPTION
  • SPECIFICATIONS
APPLICATIONS
DESCRIPTION

Print and cut custom labels of any shape or size – all in one process. Automatic Built-In Die-Cutting With LX610e Pro printing and precise die-cutting are incorporated into one easy, timesaving step. Just import your design into the included software and create an individual contour cut or select one of the many standard die-cuts (such as squares, circles, stars or rectangles. Best Print Quality & Wide Variety of Substrates LX610e Pro produces gorgeous, professional-quality labels with colour inkjet printing at up to 4800 dpi. With LX610e Pro you can choose from a wide variety of substrates, including DTM White Gloss Polyester, DTM Clear Gloss Polyester and DTM White Gloss Paper. Additional materials from the DTM Genuine Label Stock are available if using pre-die cut stock.

SPECIFICATIONS
Print Method: Thermal inkjet; Dye & Pigment ink
Print Resolution: 1200 x 1200 dpi native; up to 1200 x 4800 dpi
Print / Cut Speeds: Pre-die cut media: Up to 114.3 mm per second (4.5″).
Digital die-cut speeds are dependent upon the image being cut
Print Head: New print head with every cartridge change
Ink: Single high capacity CMY ink cartridge, process black
Colors: 16.7 million
Print Width: Pre die-cut: 13 mm (0.5″) to 127 mm (5″)
Die-cut: 13 mm (0.5″) to 104 mm (4.1″)
Media Width: Pre die-cut: 54 mm (2.125″) to 133 mm (5.25″)
Die-cut: 121 mm (4.75″)
Media Types: Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tag
Media Sensing: Moveable see-through sensor for die-cut labels;
reflective sensor for labels and tags with black stripe;
can use continuous and pre-printed labels and tags
Supply Roll: 152 mm (6″) maximum diameter on 76 mm (3″) core.
Cutter: Built-in contour cutter + Built-in fully automatic pizza-wheel cutter
Ink Level Warning: Calculates actual number of prints remaining based upon ink usage of graphics being printed (patent-pending)
Indicator Lights: Power, Ink
Controls: Pause, Feed, Unload
Operating Systems: Windows® 7/8x/10+
Data Interface: USB 2.0
Label Design/Die-Cutting Software: Primera PTCreate™ Pro Software included.
Electrical Rating: 12 V DC, 5.0 A
Power Requirements: 100-240 V AC, 50/60 Hz, 60 watts
Certifications: UL, UL-C, CE, FCC Class A
Weight: 5.7 kg
Dimensions: 345 mm W x 242 mm H x 432 mm D (13.6″W x 9.5″H x 17″D)
Included: PTCreate™ Pro software for importing images and cutting a variety of label shapes.

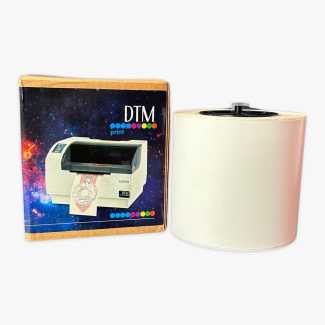

LX610e Pro also includes an ultra-high yield CMY dye ink cartridge, roll of DTM Paper Semi Gloss die-cutting label material, guaranteed 2-year warranty.
Manufacturer: Primera Technology, Inc.
