CX86 CMY Label and Tag 86mm w/ Cutter

Print Method:

Full-color electrophotographic with three separate LED Laser print engines (CMY)

Max. Print Speed:

15.24 cm (6″) per second;`Idle mode to first label presented: 4 seconds`

Media Width`:

25 – 86 mm

Media Length:

53 – 551 mm

Cutter:

Built-in rotary cutter (cuttable media length 53 mm to 551 mm)

Print Resolution:

1200 x 1200 dpi

Grand total
Add to Wishlist
Add to Wishlist
  • DESCRIPTION
  • SPECIFICATIONS
DESCRIPTION

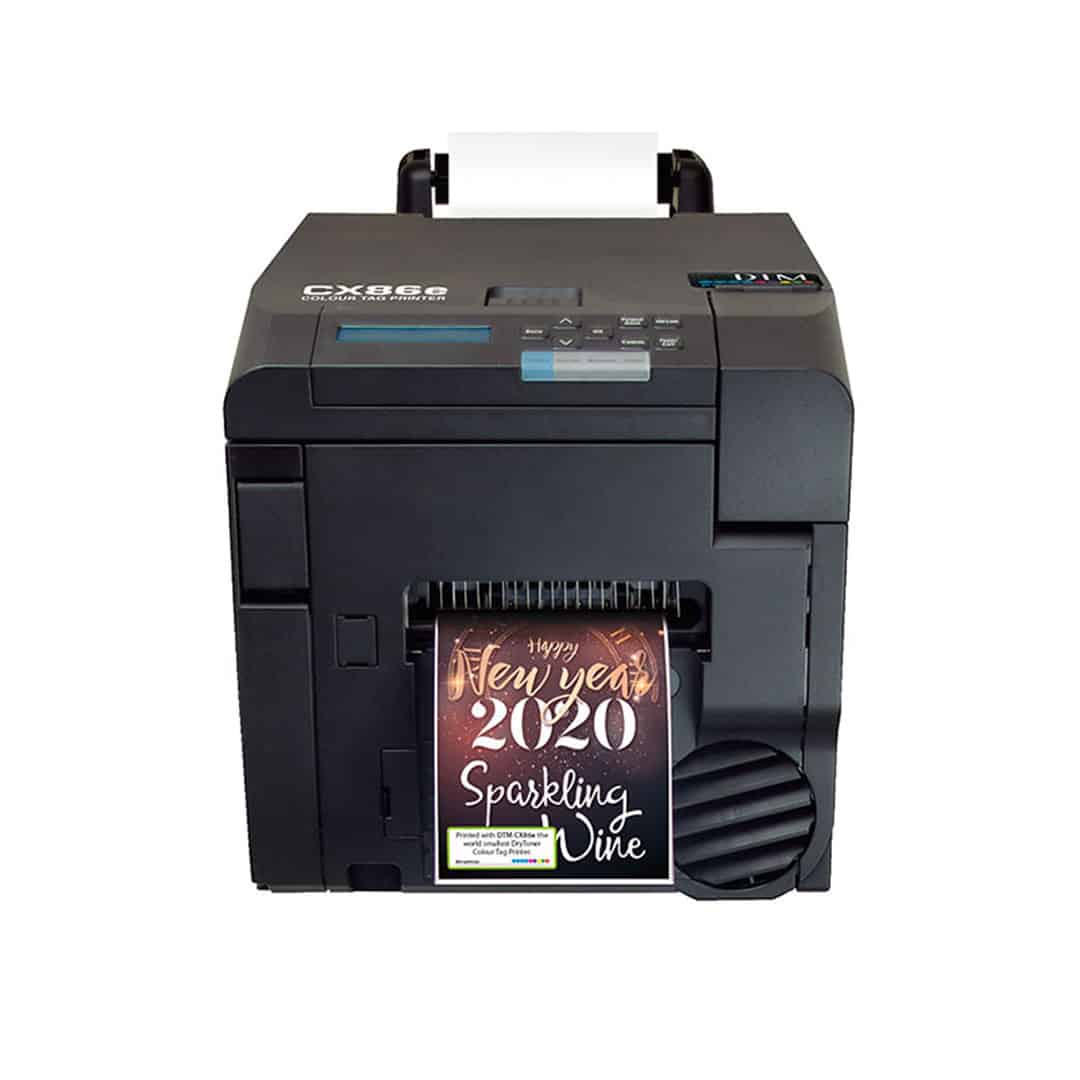

DTM CX86e Colour Tag Printer The fast and compact printing solution for production, POS and POI applications The DTM CX86e is the world’s smallest LED dry toner colour label printer and helps companies to produce versatile and professional colour labels and tags that maximize advertising impact vs. standard black and white thermal prints. Whether they are vouchers, coupons, value-added receipts, ID tags with photos, visitor badges, price and promotion stickers, pasted labels, sleeves, loop ribbons or labels for cardboards and boxes, the DTM CX86e makes it fast and easy to print high-quality full-colour labels and tags for signage and product identification that will attract customer attention and increase sales. Due the compact size the CX86e is ready to use everywhere and easy to transport. It can be used in a variety of ways, including personalisation. Take your advertising campaigns, stalls and fairs to a new level by enabling customers to add personalisation on-site.

Specifications

Product Length: 19.8 cm

Product Height: 19.8 cm

Product Width/Depth: 32 cm

SPECIFICATIONS
Print Method: Full-color electrophotographic with three separate LED print engines (CMY)
Toner Cartridge: CMY three-color toner cartridge
Print Resolution: 1200 x 1200 dpi
Max. Print Speed: 15.24 cm (6″) per second;
Idle mode to first label presented: 4 seconds
Media Width: 25 – 86 mm
Media Length: 53 – 551 mm
Cutter: Built-in rotary cutter (cuttable media length 53 mm to 551 mm)
Media Feed: External material feed via roll, continuous paper in zigzag folding or single sheet
Sheet Feed: Paper cut into rectangles in the range of 25 mm to 86 mm width and 53 mm to 551 mm length
Media Types: Self-adhesive label or tags, dry toner approved films
(Use DTM Print certified Genuine Label Stock for a variety of approved dry toner materials)
Media Sensing: Moveable transmission sensor for die-cut and through hole labels;
Moveable reflective sensor for labels and tags with black stripe;
can also use continuous and pre-printed labels and tags
Cut Type Sensing: black mark (up/down)
center holes
side holes
notch
GAP
defined length on continuous roll
Display: Mono-LCD, 16 characters x 2 lines
Memory: 512 MB
Data Interfaces: USB 2.0, Ethernet (100BASE-T/-T/10BASE-T), WLAN (optional), GPIO control port
Design Software: NiceLabel Free 2019 DTM Edition included. Upgrade for data import and Variable Data Printing.
Can also be used with most other popular label design and graphics software programs
Printer Language: PCL6(PCL XL), PCL5c
Command base embedded Barcode: PCL5c: 1D Barcode: 10 types, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved 2of5, Code39, Code128, EAN/UCC-128, CODABAR, ZIP+4 POSTNET
2D Barcode: 2 types: PDF417, QR code (Model2 only)
PCL6: N/A (Host based image data only)
Windows Driver (PCL6): Windows 7, 8, 8.1, 10
Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016
Power Requirements: 220 to 240 V AC, 50/60 Hz
110 V upon request
Certifications: CE, GS, WEEE, RoHS2, REACH
Weight: Approx. 9.5 kg
Dimensions (WxHxD): 198 x 380 x 195 mm
(7.8” x 15” x 7.7”)
Manufacturer: DTM Print GmbH
