DTM – Eddie Edible Ink Printer

Print Method: Thermal inkjet with edible ink

Max. Print Speed: 5 – 6 items per minute,

varies by item size and print

Media Width: Up to 89 mm

Media Thickness: Up to 25mm

Print Resolution: 1200 x 1200 dpi

Grand total
Add to Wishlist
Add to Wishlist
  • APPLICATIONS
  • SPECIFICATIONS
  • APPLICATION VIDEOS
APPLICATIONS
SPECIFICATIONS

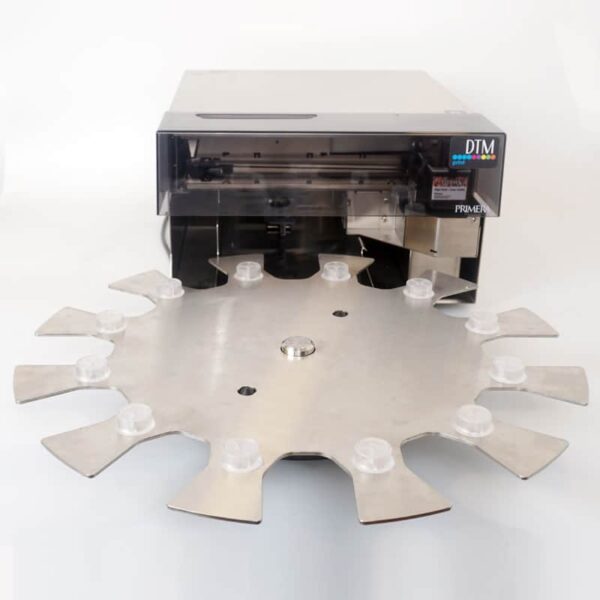

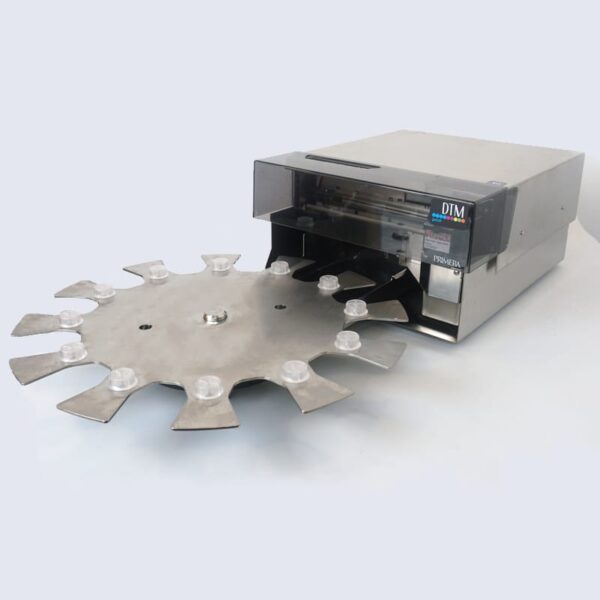

EDDIE EDIBLE INK PRINTER

Print Method: Thermal inkjet with edible ink
Print Resolution: 1200 x 1200 dpi native;
up to 1200 x 4800 dpi
Print Speeds: Varies by item size and print (e.g. for objects with Ø 89 mm 5-6 pcs./minute)
Inks: Single high capacity CMY ink cartridge, process black
Dyes Contained in the CMY Cartridge: Cyan: Blue #1 – Brilliant Blue FCF (E133)
Magenta: Carmoisine – Azorubin (E122)
Yellow: Yellow #5 – Tartrazin (E102), Yellow #6 – Sunset Yellow FCF (E110)
Printhead: Included in cartridge
Colours: 16.7 million
Print Width: up to 120 mm
Item Width: Carousel: 89 – 105 mm (with spacer 63.5 – 86.68 mm)

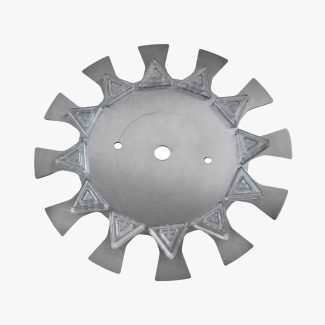

DTM Carousel Trays: 0 – 89 mm
Platform Kit: 0 – 120 mm
DTM Trays: 0 – 120 mm
Item Height/Thickness: Carousel: 3 – 19 mm
DTM Carousel Trays: 3 – 19 mm
Platform Kit: 30 – 60 mm (use raiser for Carousel or DTM Trays)
DTM Trays: 2 – 27 mm

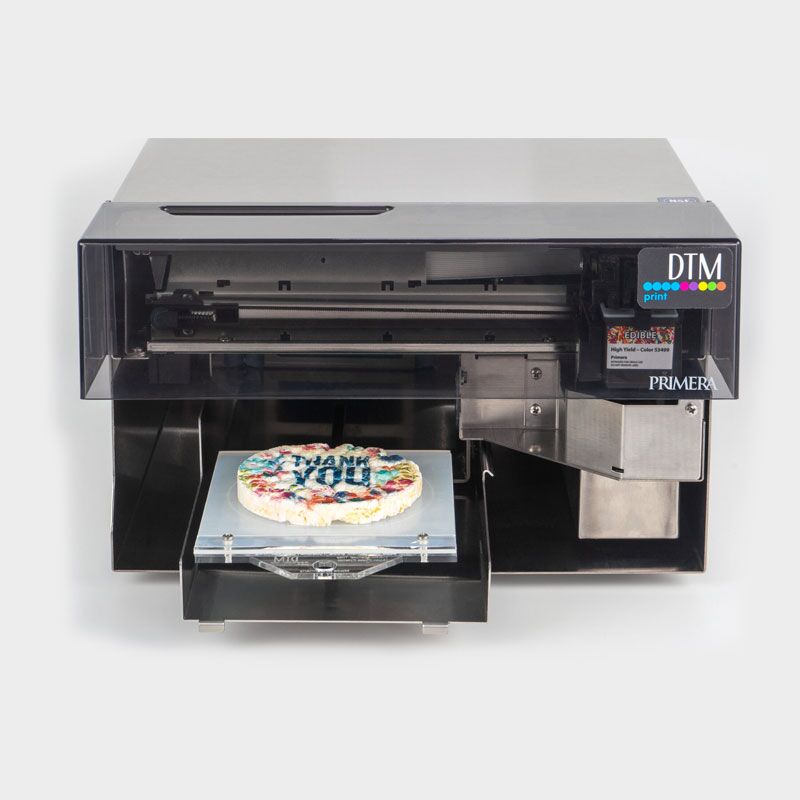

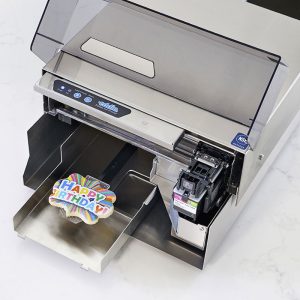

Feeding Mechanism: Platform Kit & DTM Trays (manual): The feeding arm feeds the printed objects into the printer, which automatically adjusts the height, prints the objects and then presents them.

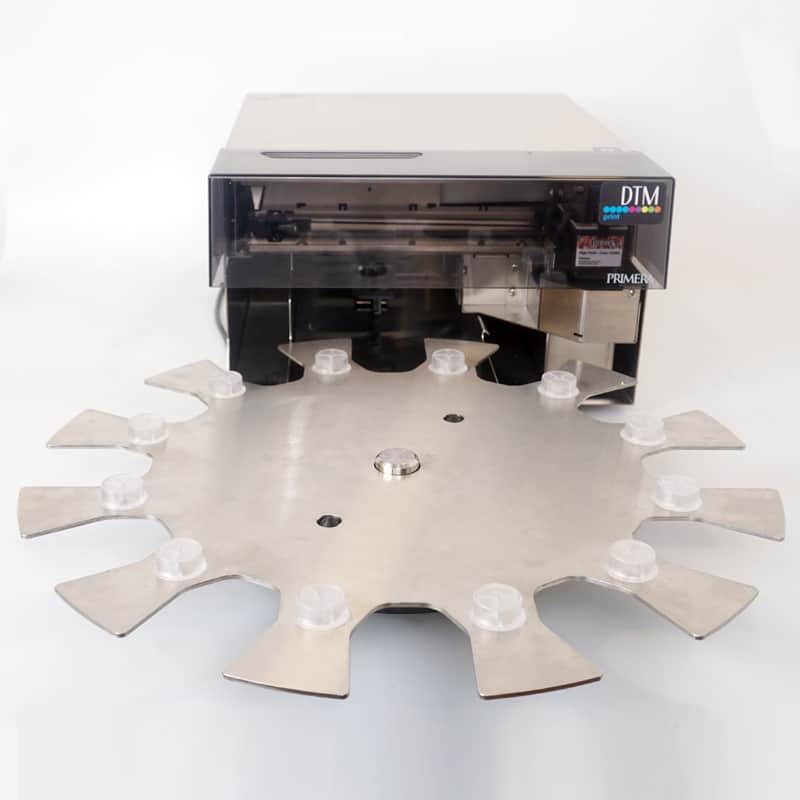

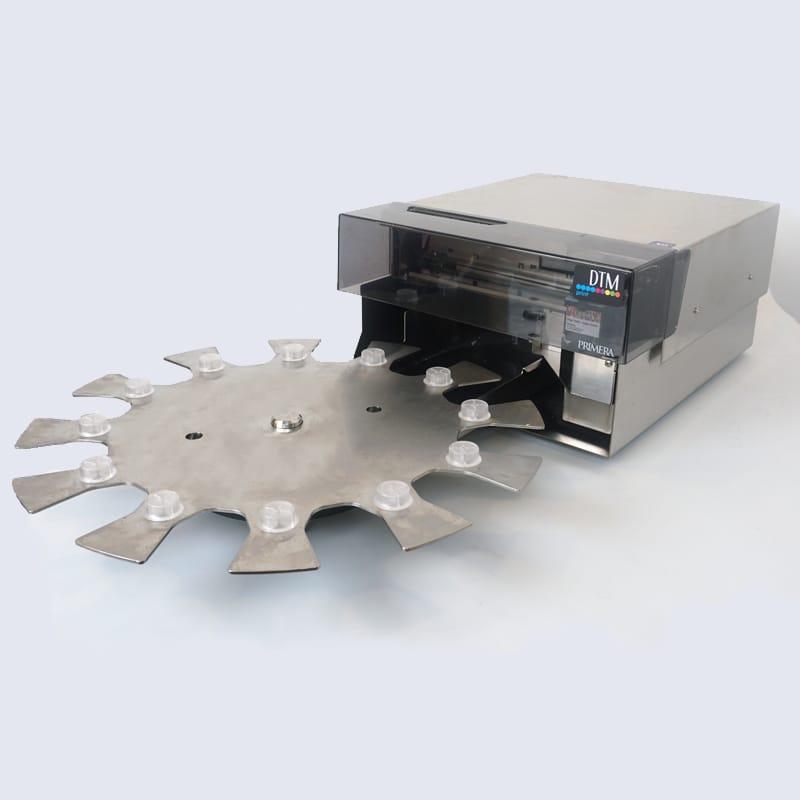

Carousel & DTM Carousel Trays (automatic): The objects are conveyed from the carousel plate into the printer and placed back on the plate when printing is finished.
Ink Level Warning: Calculates actual number of prints remaining based upon ink usage of graphics being printed.
Indicator Lights: Power, Ink
Controls: Load/Unload, Pause
Operating Systems: Windows 7 – 11
Mac OS X 10.11 – macOS 12
Data Interface/Connections: USB 2.0
Design Software: BarTender UltraLite and NiceLabel Free DTM Version (Windows)
Belight Swift Publisher (Mac)
Can also be used with most other popular label design & graphics programs.
Power Requirements: 100-240 V AC (50/60 Hz), 36 W or 12 V DC, 3 A
Certifications: UL, UL-C, FCC Class A, NSF/ANSI Standard 18 Manual Food and Beverage Equipment.
21CFR: US Code of Federal Regulations, Title 21 – US FDA
EU 231/2012: Regulation (EU) No 231/2012 laying down specifications for food additives
Weight: Total weight 11.3 kg
Printer: 8.5 kg
Carousel and base: 2.8 kg
Dimensions (WxHxD): Total: 406 mm x 181 mm x 792 mm
Printer: 317 mm x 181 mm x 474 mm
Carousel: 406 mm x 72 mm x 421 mm
Operating Temperature: 10 °C to 35 °C
Operating Humidity: 10 % to 60 % RH (non-condensing)
What’s in the Box: Eddie Edible Ink Printer, edible ink cartridge (053499), carousel (base + plate), USB 2.0 cable, EU power cord and instructions Design Software and printer driver can be downloaded from the DTM Print website.
Recommended Accessoires: Different trays and spacers are available for both automatic and manual feed. These allow printing on any objects within the mentioned specifications.
Warranty: 36 months (after product registration for devices, purchased in EU, EFTA countries and UK)
Manufacturer: Primera Technology, Inc.
APPLICATION VIDEOS
cover

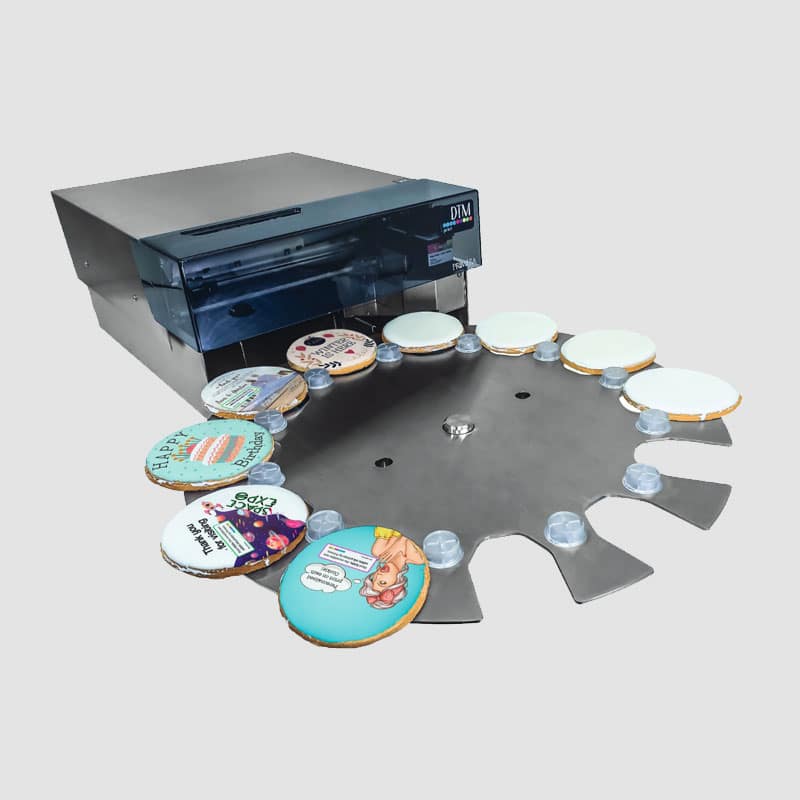

Print on CookiesEddie Edible Ink Printer
