MAX-100HG5

MAX Package Includes: Printer + 1 roll + 1 ink + 1 lamination

Warranty 1 year

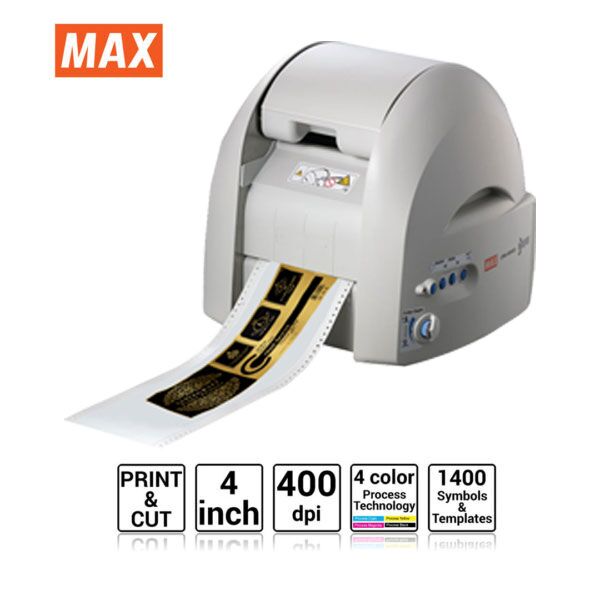

4 inch Wide Sign and Label Printing & Cutting Machine with process color capability

MAX CPM-100HG5 4 inch wide sign and label printing and cutting machine. The CPM-100HG5 combines thermal print and vinyl-cutting technology, together with our tried and tested software, to product multiple spot, or full-color outputs.

Grand total
Add to Wishlist
Add to Wishlist
  • APPLICATIONS
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
APPLICATIONS
Perfumes
Chocolates
Barcode
Pipe Marking
Trophies
Safety Signs
Jewelry
School Bus Signs
DESCRIPTION

Applications

ANSI and OSHA Agency Required Signage

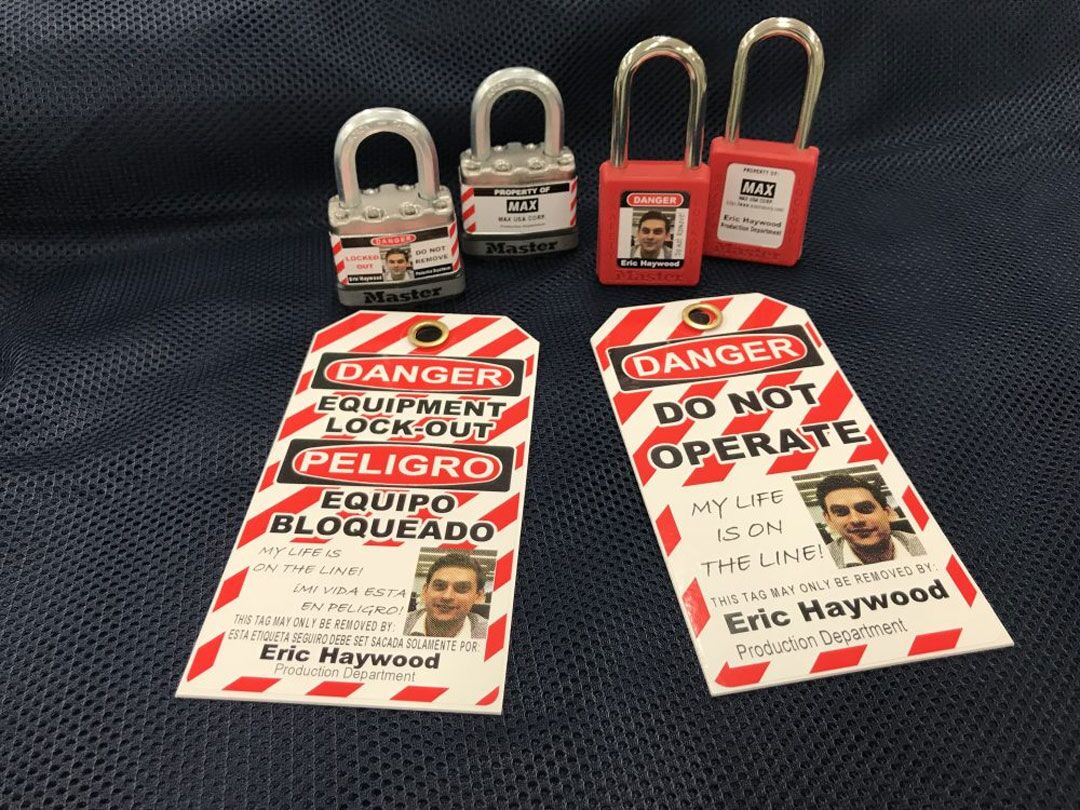

Health & Safety Signs

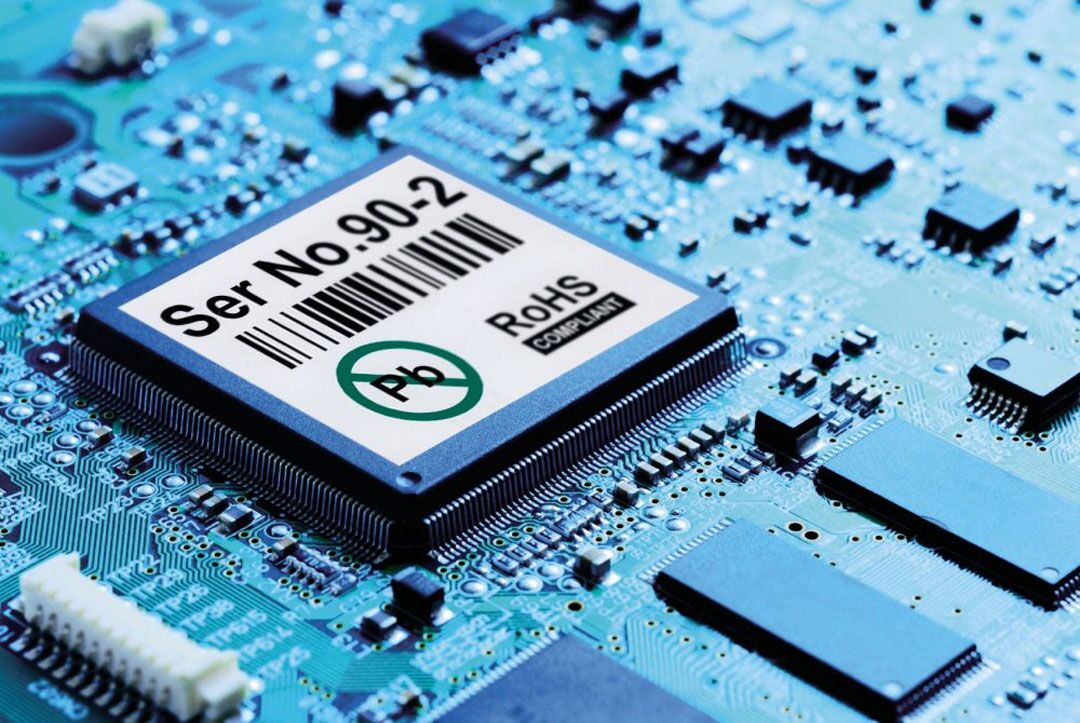

Product & Asset Labelling

Visual Management Signs

Pipe Marking / GHS Labels

5S / Kaizen / Kanban Labels

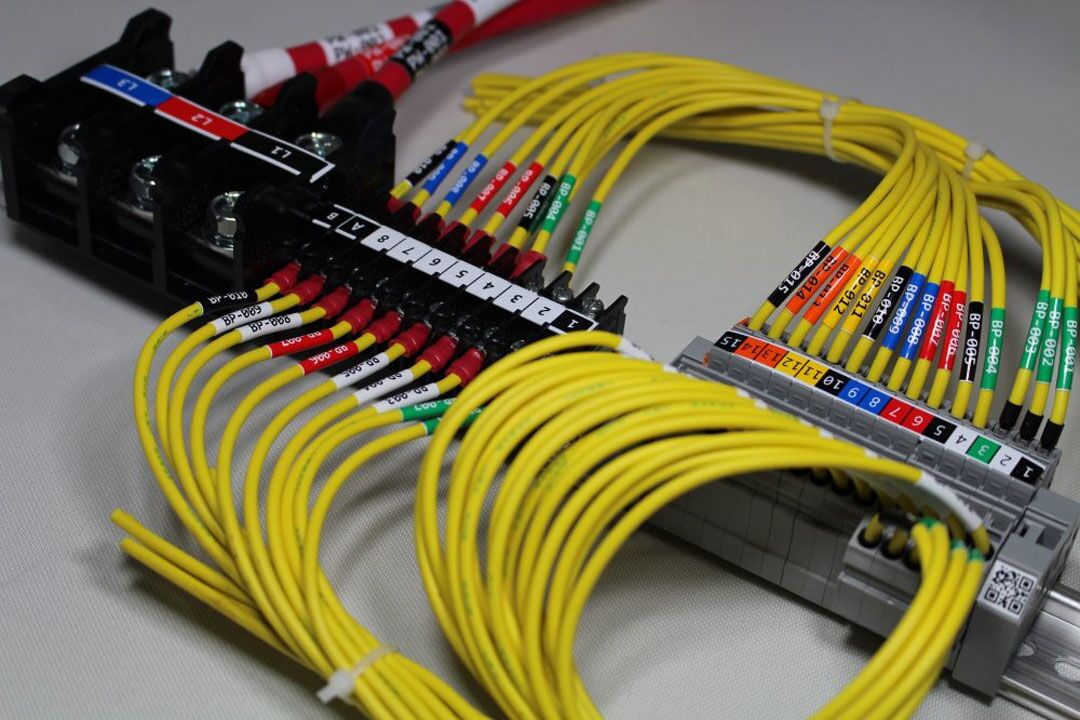

Wire and Cable Marking

Custom Labels

FEATURES
SIGNS AND LABELS ON DEMAND

You can create your own signs and labels wherever and whenever you want them with MAX CPM system

INTEGRATED PLOTTER/CUTTER

Cuts any shape and size to suit your signs and labeling needs

REDUCE COSTS

Print custom labels and signs in-house with the MAX CPM system. You can save money by eliminating waste and decreasing purchasing costs.

LARGE TEMPLATE AND SYMBOL LIBRARY

MAX Bepop PC-EX software has over 1,400 symbols and templates

INCLUDE PHOTOS AND IMAGES

MAX 4 color process technology, using CMYK ribbons, allows you to import and print any photos and logos on the 8 inch wide white tape roll.

CSV DATABASE CONNECTION

Variable information from your database saved in CSV format, can be linked directly to your label designs

TECHNOLOGY FRIENDLY

Prints UPC, QR codes and much more

HIGH DEFINITION

Prints 400 DPI for clarity of smallest font size and clearer photo images

SPECIFICATIONS
DIMENSIONS 12.6″(H) x 13.0″(W) x 12.6″(L)
WEIGHT 19.8 lbs
PRINT TECHNOLOGY Thermal Transfer
COLOR PRINTING CAPABILITY Multi-Color
PRINT RESOLUTION 400 dpi
PRINTING SPEED 1 inch/sec.
CUTTING SPEED 4.7 inch/sec.
CUTTING FUNCTION Free-cut (Shapes, Letters, Bordering, etc.)
MAXIMUM OUTPUT RANGE 4 inch x 78.7 inch
MAXIMUM PRINT WIDTH 4 inch
CONNECTIVITY USB2.0 Full Speed
OPERATING TEMPERATURE 50-95°F (10-35℃)
OPERATING HUMIDITY 35-80%, non-condensing
POWER SUPPLY VOLTAGE AC 100-240V

Related Product

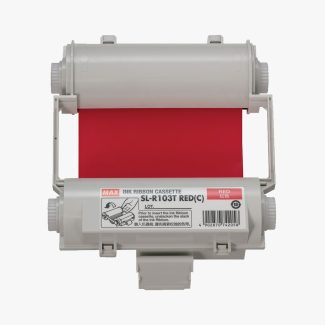

Max CPM100H5 Consumables
